Why Choose Us

RESEARCH AND DEVELOPMENT

We have our own mold research and development team, from design, production to follow-up maintenance, especially when the mold is abnormal during the stamping process, Gator can handle it in the first time.

In order to ensure timely delivery and product quality, our molds are made of imported tungsten steel materials, which are different from ordinary alloy steel used in other cheap material.



1
3
2
4

MOULD

We have single-slot punching, compound punching, and high-speed punching corresponding molds to meet the needs of different motor stators and rotors. About 90% of our motor laminations are customized from drawings. During the mold design process, our professional designers will Drawings put forward some constructive suggestions to better satisfy customers.

SAMPLES MAKING

We can meet different size and technology of motor lamination samples requirement.
2
1

A

Laser Cutting

C

High Speed wire cutting

B

Middle Speed wire cutting

D

Low Speed wire cutting( we imported the Seibu brand machine from Japan)

222

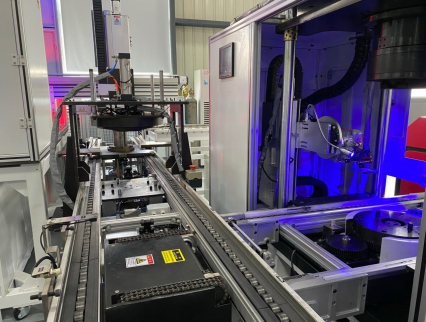

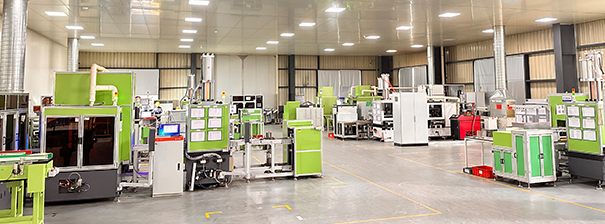

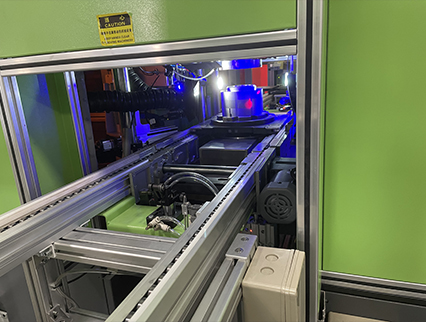

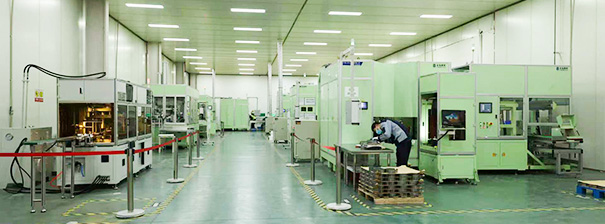

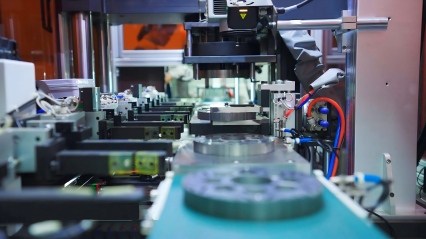

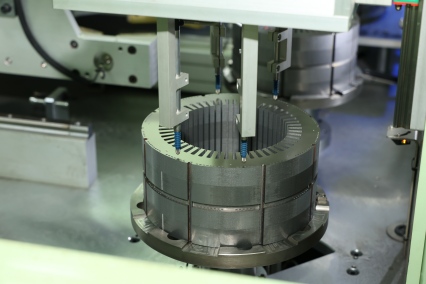

Automatic production lines

We have two automatic production lines that can automatically complete the pressing, welding, coding, air showering, and testing of the motor stator and rotor stack. It is specially designed for the production of motor laminations for drive motors and servo motors with large quantities and strict requirements, which greatly improves the timely delivery rate and Pass rate.

3

STAMPING

We have different types of presses to meet your different purchasing needs.

Single Slot Stamping
Presses:  10T-16T
Compound Stamping
Presses: 40T-550T
ProgressiveHigh SpeedStamping
Presses :630T,550T,315T(Schuler), 300T(AIDA),160T,120T,80T

STAMPING WORKSHOP & ADVANTAGE

A.Introduced the advanced SCHULER Equipment & Technology from Germany and AIDA from Japanwhich let us in the motor laminations industry leading lever now.
B.Achieve batch production of 0.1mm thickness silicon  steel and 0.03mm thickness non-alloy material stamping.
C.The single slot press can stamp OD2000mm Max.

SINGLE SLOT STAMPING

Tool:notch stamping die
Cut the silicon steel sheet to required size, and each piece of them will be individually stamped into the required shape. Single slot stamping is a more suitable way for the stator laminations with larger outer diameter and large amount of samples.

7
8
xian1
3

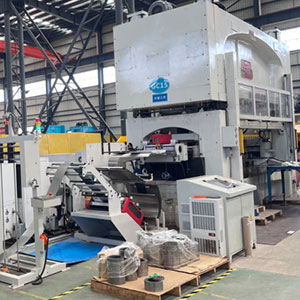

COMPOUND STAMPING

Tool:compound die
Purchase the corresponding silicon steel strip according to the size of the required product, transfer the material to the stamping press, and then form motor laminations,both stator lamination and rotor lamination.
There are two feeding methods,one is to use the wafer punched by other motor lamination, which is inefficient, but can save material costs; the other is continuous feeding of strips, with high efficiency.We will check the wafer stock situation when the customer places an order, and then calculate the best price to make a contract for the motor stator and rotor.
In addition, our company has a patent on self- interlock by compound mold, which greatly reduces the cost of motor laminations verification in the early stage of progressive die batch stamping.

xian2
xian4
84aa74665949f12e2c50f73a867d5d8

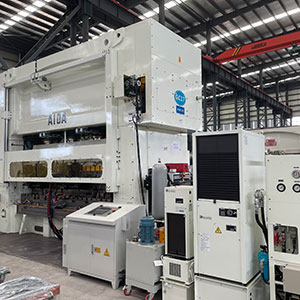

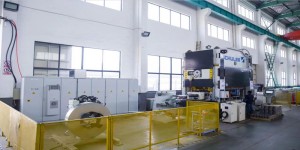

PROGRESSIVE STAMPING

Tool:progressive die
This kind of mold is also called high-speed stamping mold. Different from the compound mold, it can only use the suitable material width for feeding, completing the stamping and self-interlock in the mold directly to form the stator and rotor stack.
There are two types of self-interlock. One is the circular self-interlock point for the small size of motor laminations, which has high technical requirements. The stacks does not need to be pressed twice on the fixture tooling.the other is the rectangular self-interlock point, which requires secondary pressure to ensure fasten.

冲压
3

STACKING

The lamination will be stacked into cores by rivet, interlock, welding, self-adhesive, glue, bolt, buckle, etc. Interlock and welding may be both used when the stator laminations length is too high.

Rivet

Rivet stacking is generally used for rotor, there are head rivet and flat rivet.

Welding

Welding stacking is used for stator laminations, there are laser welding and TIG welding.

Glue

Paint glue on every single motor lamination and stick them together.

Interlock

Make the interlock points during stamping,motor lamination will be stacked to cores by themselves with these points. Interlock could be either rectangle or round circular. Progressive stamping all use interlock process to save the stator and rotor stack cost and time.

Self-adhesive

Material: B35A300-Z/B50A400-Z
The material has coating on its surface, it will melt and attach every single rotor and stator lamination together during heating. Self-adhesive will make products smoother and more solid.

Bolt

Bolt is generally used for the stator laminations with larger outer diameter.

Buckle

Buckle stacking is used for stator lamination, there are straight or skew buckles.

process

INSPECTION

4

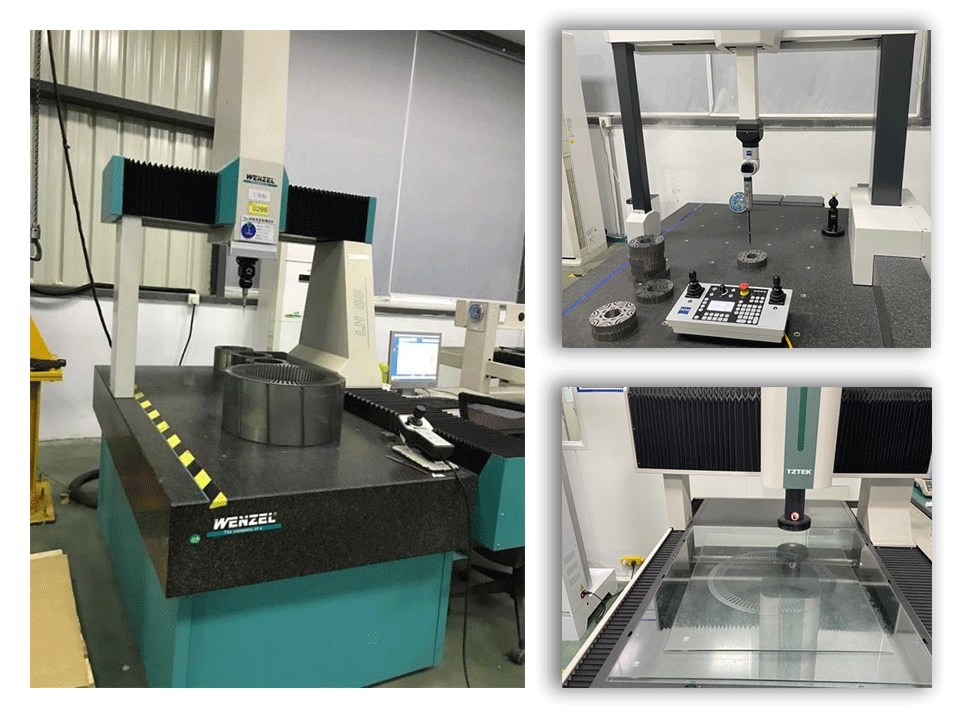

Our testing equipment includes projector, three-coordinate, drawing force meter, iron loss tester, deflection tester, insulation resistance tester, etc.,and CMM has ZEISS,HEXAGON, and WENZEL brands.

Inspection is divided into first article inspection, self-inspection, patrol inspection and final inspection. No matter what the stamping method is, the first few pieces of motor lamination and the first few sets of stator and rotor stacks need to be sent to the inspection room, and mass production can be carried out only after the inspection is passed.

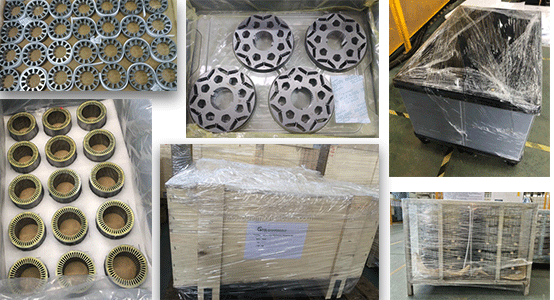

PACKING

According to customer requirements, stators and rotors are packed with iron cages, plastic turnover boxes, plywood boxes, wooden boxes, etc., and the inner packaging includes blister, sponge strips and sponge paper, etc.
When the qualified motor lamination or stator and rotor stacks are finished, we will separate them with sponge and pack into non-wooden cases for export delivery.



5
